500W
Pulse Wave

Laser Cleaning Machine
|
Starting at
$28,985.00
Free Shipping within the Continental US
500W PULSE WAVE
Max Power

Max Power

500W
Scan Mode

Scan Mode

Dual Axis - 8 scan patterns
Heavy-Duty Lift Rings

Heavy-Duty Lift Rings

Simplifying transport and mobility
Cooling System

Cooling System

Air Cooled

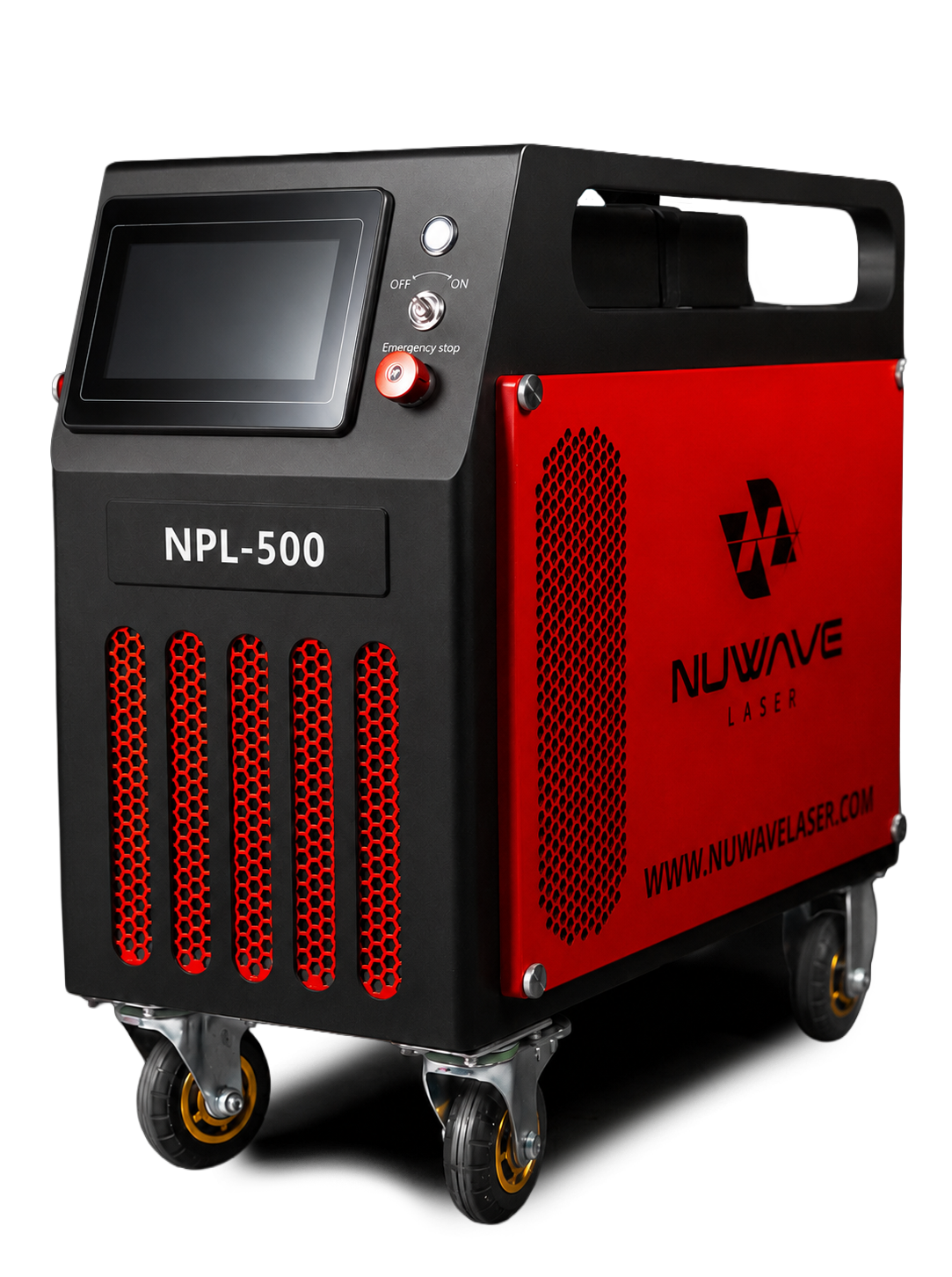

500W Pulse Wave
Laser Cleaning Machine

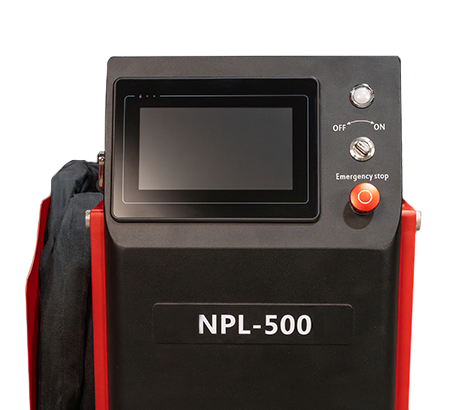

500W PULSE WAVE overview

The 500W Pulse Wave Laser Cleaning Machine delivers advanced industrial cleaning with unmatched precision and safety. Designed for a wide range of applications, it effectively removes rust, paint, coatings, and contaminants across industries such as aerospace, automotive, and construction. Its intuitive interface, lightweight cleaning head, and multiple scan modes ensure user-friendly operation and adaptability for complex surfaces. This system is built for demanding environments and consistent performance.

View Product Sheet

Machine Specifications

Max Power
500W
Laser Safety Class
Class IV
Wavelength
1064 nm
Laser Type
Pulse Wave - Top Hat
Single Pulse Energy
15 mj
Scan Mode
Dual Axis - 8 scan patterns
Max Scan Width
110 mm / 4.3 in
Cable Length
5 m / 16.4 ft
Equipment Weight
55.8 kg /123 lbs
Equipment Dimensions
L: 30” x W: 17” x H: 26”
Operating Temperature
0-40 °C / 32-104 °F
Power Requirements
220 VAC ± 10%, 1-PH, 60 Hz
Power Consumption
≤4 kW @ 13 A @ 25 °C / 77 °F
Supply Air Pressure
85-120psi, clean compressed air or Nitrogen
Cooling System
Air Cooled
External Control
Remote Capable
Safety Features
Double Activation, Enable Button, Emergency Stop

Compatible Materials

Aluminum
Adhesive Residues
Brick
Brass
Carbon Fiber
Cast Iron
Ceramics
Concrete
Copper
Fiberglass
Iron (Steel, Carbon Steel, Stainless Steel)
Limestone
Metal Alloys
Metal Oxide Layers
Mold Cleaning
Mold Remediation
Moss, Algae, and Biofilms
Nickel
Oil and Grease Residues
Paint & Coatings
Plastics
Stone
Titanium
Wood
Zinc
DuroMax dual fuel portable generator
Need To Power Your Machine?
Talk To An Expert
Pre-owned Nuwave laser cleaning machine
Interested in Used/Pre-Owned?
Inquire Now

Serious Power. Real Efficiency.

Our 500W Pulse Wave Laser is built to handle heavy-duty cleaning with speed, precision, and minimal downtime. See how it protects your assets and your bottom line.

Precision Prep at the Speed of Light

Watch the 500W Pulse Laser transform surface preparation into a fast, precise, and mess-free process. See how its intense yet controlled pulses remove rust, paint, and contaminants with ease, leaving a perfectly clean, ready-to-work surface. No grinding, no chemicals, and no damage, just powerful, efficient laser technology designed to save you time and deliver flawless results every time.

Pulse Power vs. Paint Layers

Experience the sheer power of industrial pulse wave laser technology as it blasts through thick layers of paint with stunning precision. This video shows how the laser strips away even the most stubborn coatings, without chemicals, contact, or damage, leaving behind a clean surface. It’s fast, efficient, and built for the toughest jobs in manufacturing, restoration, and beyond!

The Power of Light In Your Hands

Achieve Superior Results Across Diverse Applications

Laser technology offers an incredibly versatile, non-abrasive, and environmentally-friendly way to handle a wide variety of surface prep and industrial cleaning needs.

Applications Across Industries

Built Strong for Heavy-Duty Applications

The 500W Pulse Wave Laser Cleaner is engineered to meet real-world demands, delivering powerful yet precise surface cleaning across various industries. From rust and paint to coatings and contaminants, it removes buildup efficiently and effectively, keeping operations running smoothly.
