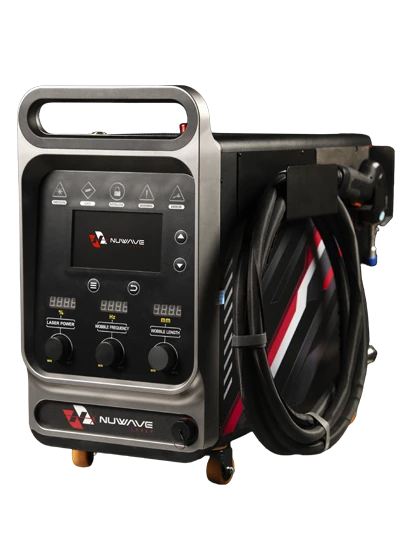

NOVAWELD™Core Series 700W
Laser Welding Machine
|
Starting at
$7,990.00
$5,999.00
Free Shipping within the Continental US
No items found.
Faster Welding
Up to 10× faster weld speeds than TIG or MIG with minimal prep or post-grind.
Industrial Performance
Engineered for continuous, round-the-clock operation with consistent quality.
Advanced Cooling
Dual-circuit refrigerant cooling system prevents overheating and downtime.
Precision Control
The lightweight, well-balanced torch and smooth wire-feed system make it easier to achieve consistent, professional results.
Cleaner Welds. Faster Production.
Precision laser control minimizes spatter and distortion, so your team spends less time on post-processing and more time producing.
NOVAWELD™ 700WLaser Welding Machine
The NOVAWELD Core Series delivers precision laser welding at mid-range power levels, ideal for shops looking for a balance of versatility and efficiency. These models are perfect for detailed welding tasks and smaller production environments.
Machine Specifications
Laser Power
700W
Power Consumption
2.45kW/h
Rated Input Power Supply
Single phase 220V
Input Power Frequency
50/60H Z
Fiber Laser Diameter
30 m
Wobble Length
0-4mm
Cooling
Dual-circuit refrigerant direct cooling
Equipment Weight
38 KG / 84 lbs
Equipment Dimensions
L: 27” x W: 23” x H: 12”
Working Temperature
-30-60 °C / -22-140 °F
Storage Temperature
-40-70 °C / 32-104 °F
Working Humidity
0-90%
Applicable Wire Diameter
0.8/1.0/1.2mm
Wire Feed Mode
Single/double wire feeding
Process Gas
Argon, Nitrogen, Helium, Compressed air
Safety Features
Includes key switch, dual-step trigger, safety circuit, and door interlock.
Weld Penetration
Aluminum
<1.5mm
Stainless Steel
0.2~2.8mm
Carbon Steel
0.2~2.8mm
Galvanized Steel
0.2~2.4mm
Brass
<2mm
Accessory Box
- 10 Protective lenses
- O-rings
- Spring seals
- Spare focusing lens
- 7 copper nozzle types
- Cutting copper nozzle
- Wire feeding guide nozzle
- Wire feeding clamp & quick connect
- Screws
- Allen wrench
Welding Machine
- Laser Safety Glasses
- Gloves
- Grounding Clamp Cable
- Wire feeding control cable
- Welder power cable
Wire Feeder
- Wire feeding tube
- Wire feed Rollers
- Wire feeder power cable
Modern Welding for Modern Shops
Scale Faster with Financing.
Learn MoreReady for a Better Way to Weld?
Discover how Nuwave’s advanced laser welding machines can streamline your operations, reduce costs, and elevate production quality.
