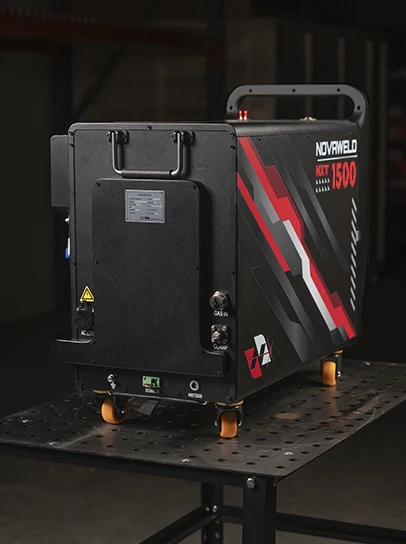

NOVAWELD™Titan Series 1500W
Laser Welding Machine
|
Starting at
$15,980.00
$11,985.00
Free Shipping within the Continental US
No items found.
Faster Welding
Up to 10× faster weld speeds than TIG or MIG with minimal prep or post-grind.
Industrial Performance
Engineered for continuous, round-the-clock operation with consistent quality.
Advanced Cooling
Dual-circuit refrigerant cooling system prevents overheating and downtime.
Precision Control
The lightweight, well-balanced torch and smooth wire-feed system make it easier to achieve consistent, professional results.
Cleaner Welds. Faster Production.
Precision laser control minimizes spatter and distortion, so your team spends less time on post-processing and more time producing.
NOVAWELD™ 1500WLaser Welding Machine
Built for demanding production environments, the NOVAWELD Titan Series 1500W delivers powerful laser welding performance. Designed for speed, precision, and deep penetration, these industrial-duty systems handle thicker materials and extended shifts with ease. The Titan Series combines exceptional weld quality with efficiency, making it the ideal solution for high-volume fabrication and heavy-duty applications.
Machine Specifications
Laser Power
1500W
Power Consumption
4.95kW/h
Rated Input Power Supply
Single phase 220V
Input Power Frequency
50/60Hz
Fiber Laser Diameter
14m
Wobble Length
0-6mm
Cooling
Dual-circuit refrigerant direct cooling
Equipment Weight
45 KG / 99 lbs
Equipment Dimensions
L: 27” x W: 24” x H: 12”
Working Temperature
-20-60 °C / -4-140 °F
Storage Temperature
-30-70 °C / -22-158 °F
Working Humidity
0-90%
Applicable Wire Diameter
0.8/1.0/1.2/1.6/2.0/2.5mm
Wire Feed Mode
Single/double wire feeding
Process Gas
Argon, Nitrogen, Helium, Compressed air
Safety Features
Includes key switch, dual-step trigger, safety circuit, and door interlock.
Weld Penetration
Aluminum
＜5mm
Stainless Steel
＜6mm
Carbon Steel
＜6mm
Galvanized Sheet
＜6mm
Brass
＜6mm
Copper
＜2.5mm
Accessory Box
- 10 Protective lenses
- O-rings
- Spring seals
- Spare focusing lens
- 7 copper nozzle types
- Cutting copper nozzle
- Wire feeding guide nozzle
- Wire feeding clamp & quick connect
- Screws
- Allen wrench
Welding Machine
- Laser Safety Glasses
- Gloves
- Grounding Clamp Cable
- Wire feeding control cable
- Welder power cable
Wire Feeder
- Wire feeding tube
- Wire feed Rollers
- Wire feeder power cable
Modern Welding for Modern Shops
Scale Faster with Financing.
Learn MoreReady for a Better Way to Weld?
Discover how Nuwave’s advanced laser welding machines can streamline your operations, reduce costs, and elevate production quality.
